Mechanical prototypes need more than a good appearance. Parts must fit, rotate, slide, snap or carry loads in predictable ways. 3D printing gives engineers and product developers a fast method for checking geometry and movement before committing to machining or mass production.

Prototype bearings and bearing seats

Printed housings can verify bearing fit, mounting position and surrounding geometry. The bearing itself is usually a commercial component, while the printed part tests how it integrates with the design.

Shafts and clearances

Shaft-and-hole fits are sensitive to printer calibration, material shrinkage and orientation. Test coupons are often more useful than assuming a universal tolerance.

Hinges and pivots

Living hinges, pin hinges and multi-part pivot joints can all be prototyped. The best design depends on material flexibility, expected cycle count and load.

Moving assemblies

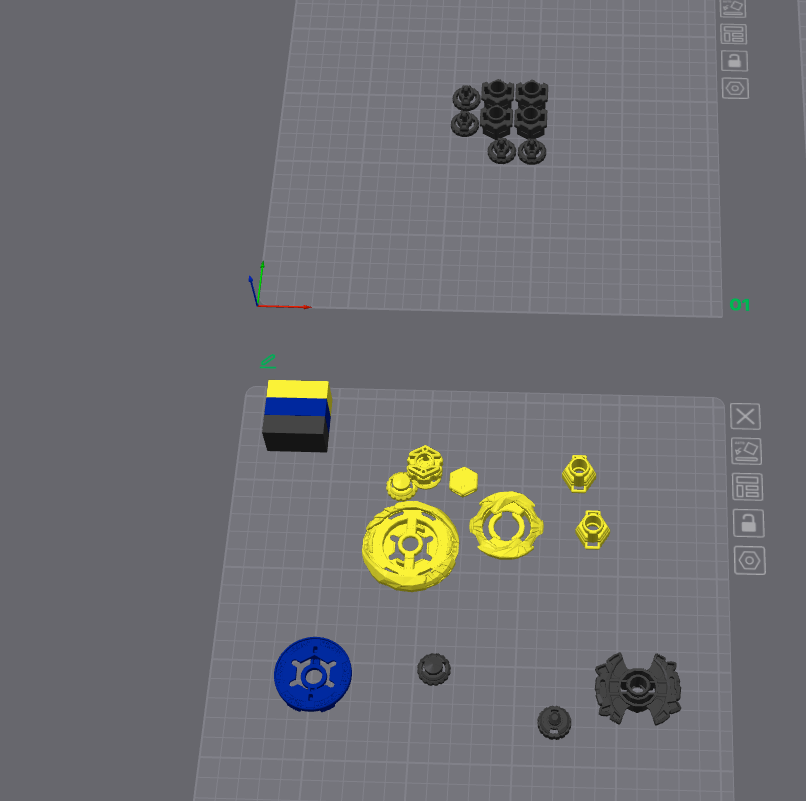

3D printing is useful for checking linkages, sliders, gears, brackets and mechanisms. Assemblies can be printed separately for easier adjustment or designed as print-in-place mechanisms when clearances allow.

Design considerations

Correct clearance between moving parts
Wall thickness around fasteners
Layer orientation relative to load
Heat-set inserts where repeated screws are needed
Material choice based on stiffness and impact
Access for assembly and maintenance

FDM for mechanical prototypes

FDM is widely used because materials such as PLA, PETG, ABS, ASA, nylon and reinforced filaments cover a broad range of prototype needs. The final choice depends on environment and testing goals.

Know the limits

A printed prototype does not automatically reproduce the mechanical properties of an injection-molded or machined final part. Use it to validate fit, motion, ergonomics and concept behavior, then apply appropriate engineering validation for the final production method.

Iterate quickly

The biggest advantage is speed of learning. Print, assemble, identify the interference or weak point, update the CAD model and repeat.

Artin3D provides custom mechanical prototype design support and 3D printing in Bangladesh for moving assemblies, enclosures and product-development projects.
